Getting Started with StellarX

Welcome to the StellarX family! We’re excited to have you on board. This guide will walk you through everything you need to get up and running—from unboxing and hardware assembly to establishing your first network connection with your PC.

1. What's in the Box

Before we begin, please check that your package includes all the following components. If anything is missing, please contact our support team.

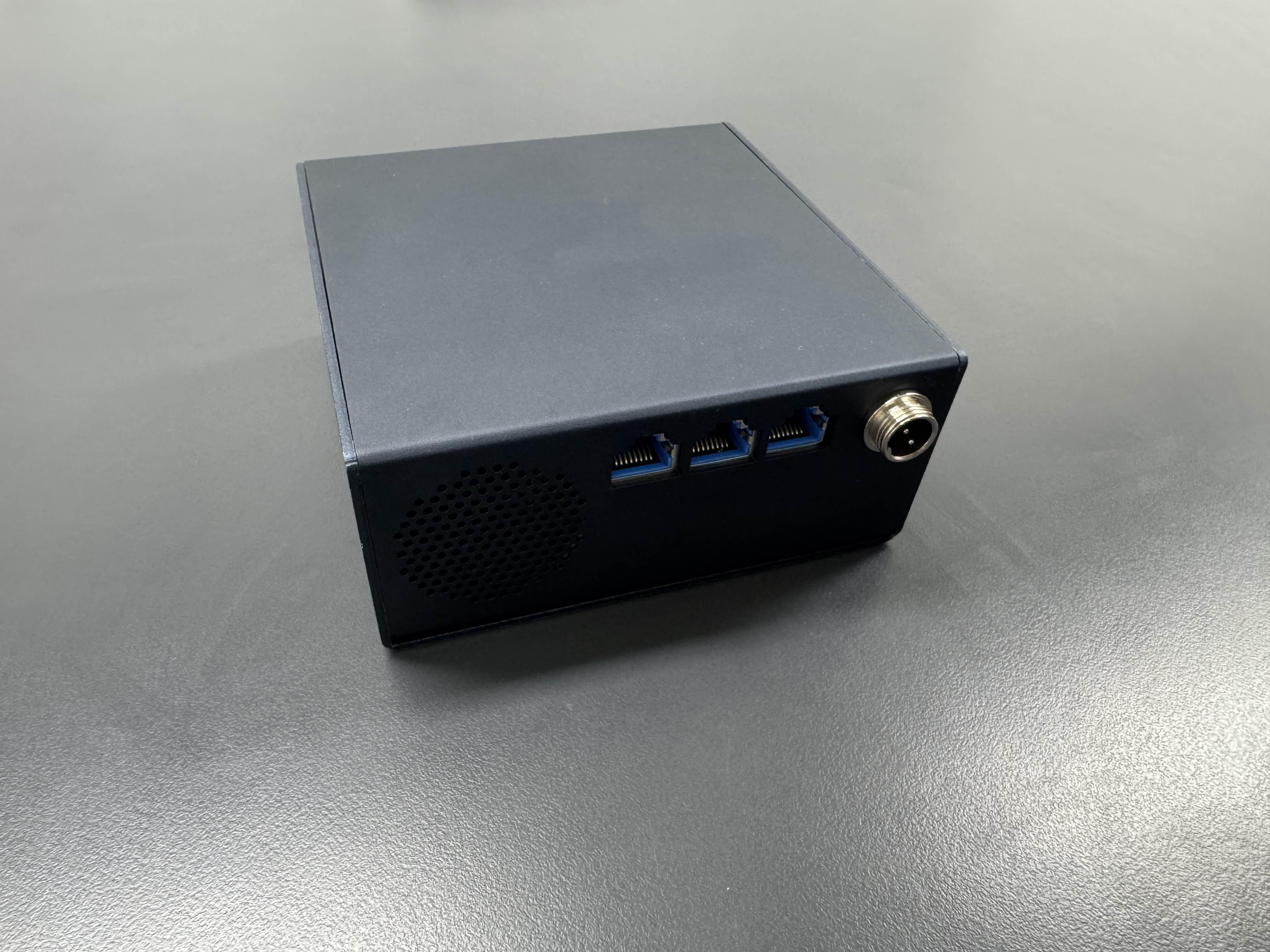

Stellar X Main Unit — StellarX Main Unit

2. Device Overview

Take a moment to familiarize yourself with the StellarX interface. Knowing the ports now will make the setup process much smoother.

Hardware Interface — StellarX Interface1

Port / Button	Description
1. Eth1 (Static IP)	Pre-configured with a Static IP for direct connection. • IP: `10.0.0.1` • Subnet Mask: `255.255.255.0`
2. Eth2 (DHCP)	Configured for DHCP. Connect this to a router or switch to receive an IP address automatically.
3. EtherCAT Out	EtherCAT Master output. Connect this to the IN port of your first EtherCAT slave device.
4. DC 24V In	Power input port.
5. Reset Button	Used to restore the device to factory settings.

3. Hardware Setup & Power On

To ensure the longevity of your device and prevent electrical damage, please follow these steps in order.

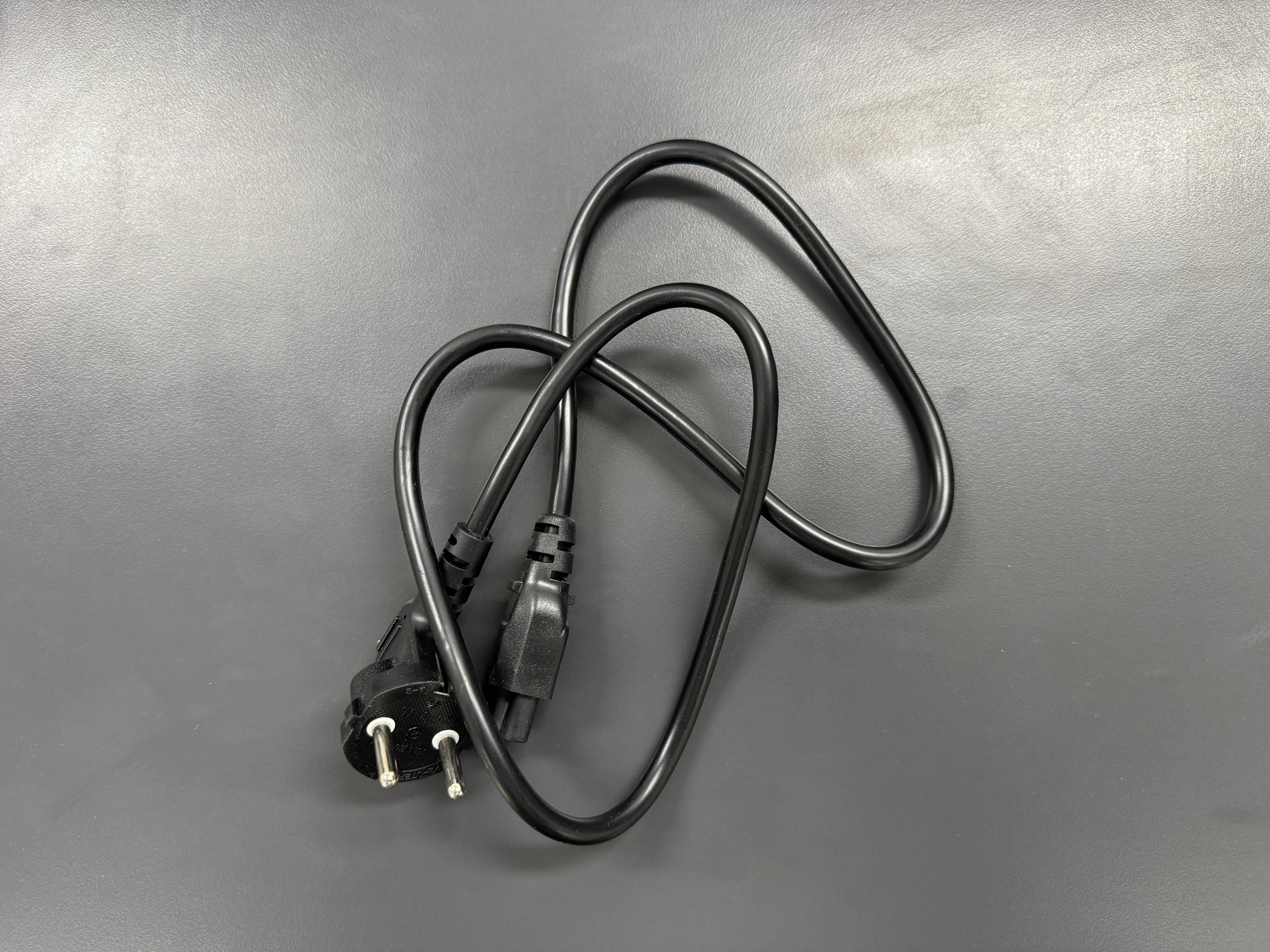

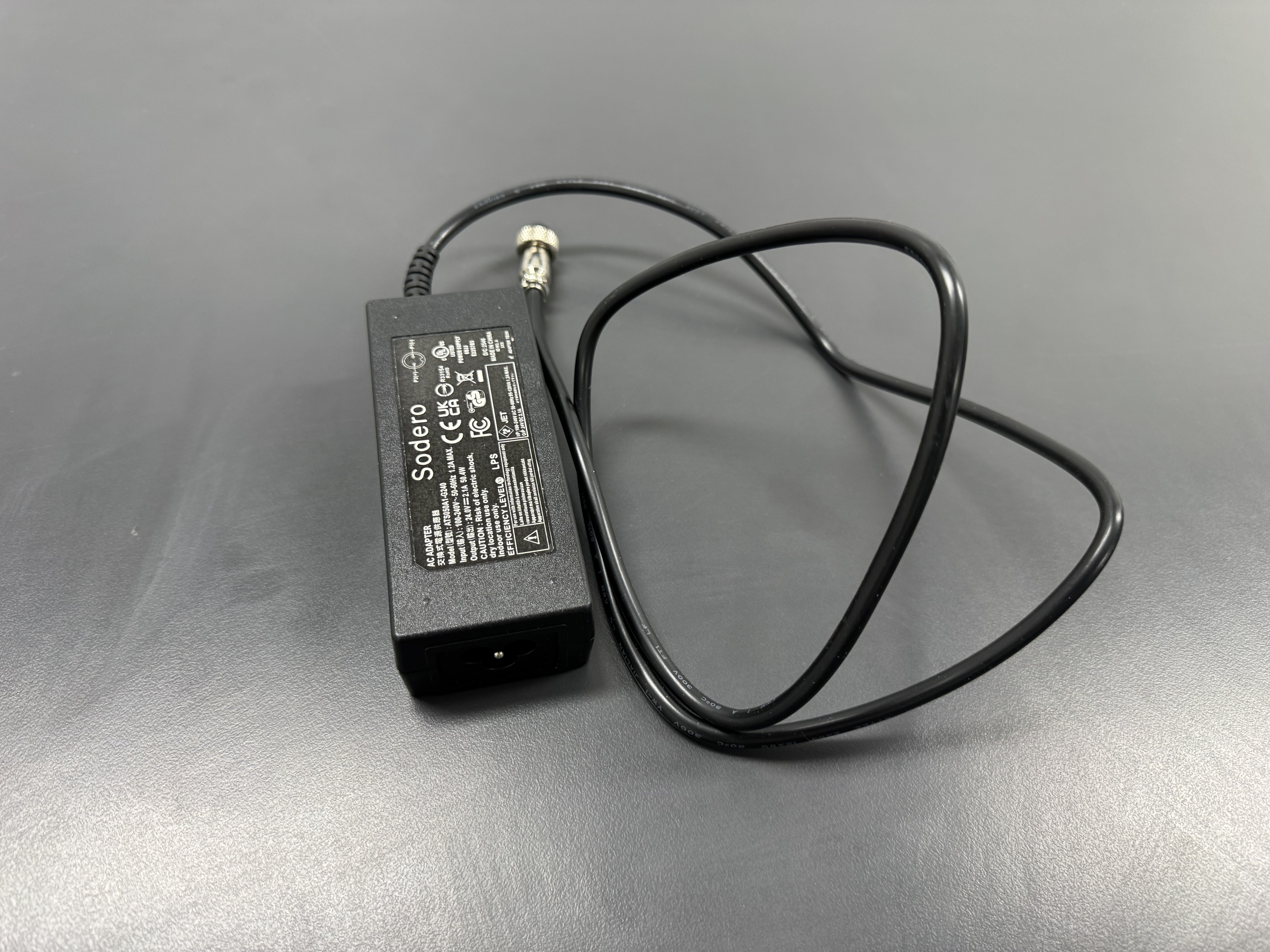

Prepare the Adapter: Connect the power cable to the 24V power adapter. Stop! Do not plug it into the wall outlet just yet.
Connect to StellarX: Insert the adapter's output cable into the DC 24V In port on the unit.

⚠️ Safety First: To prevent electrical arcing (sparks) or connection issues, always connect the cable to the StellarX unit first, and then plug the power adapter into the wall.

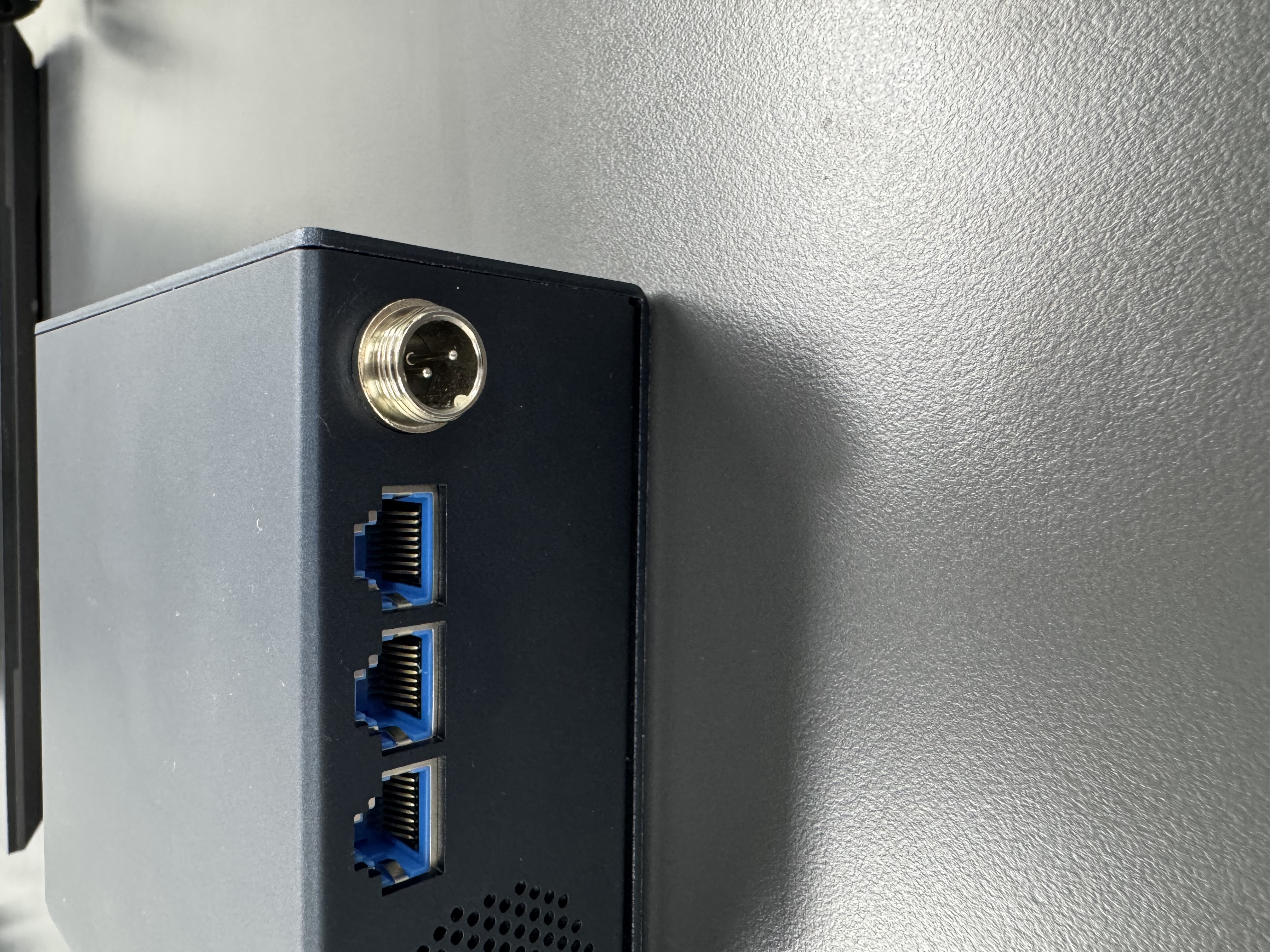

💡 Pro Tip: The connector features a small guide notch inside. If it doesn't slide in easily, gently rotate the cable until the notch aligns with the port.

Aligning the connector notch

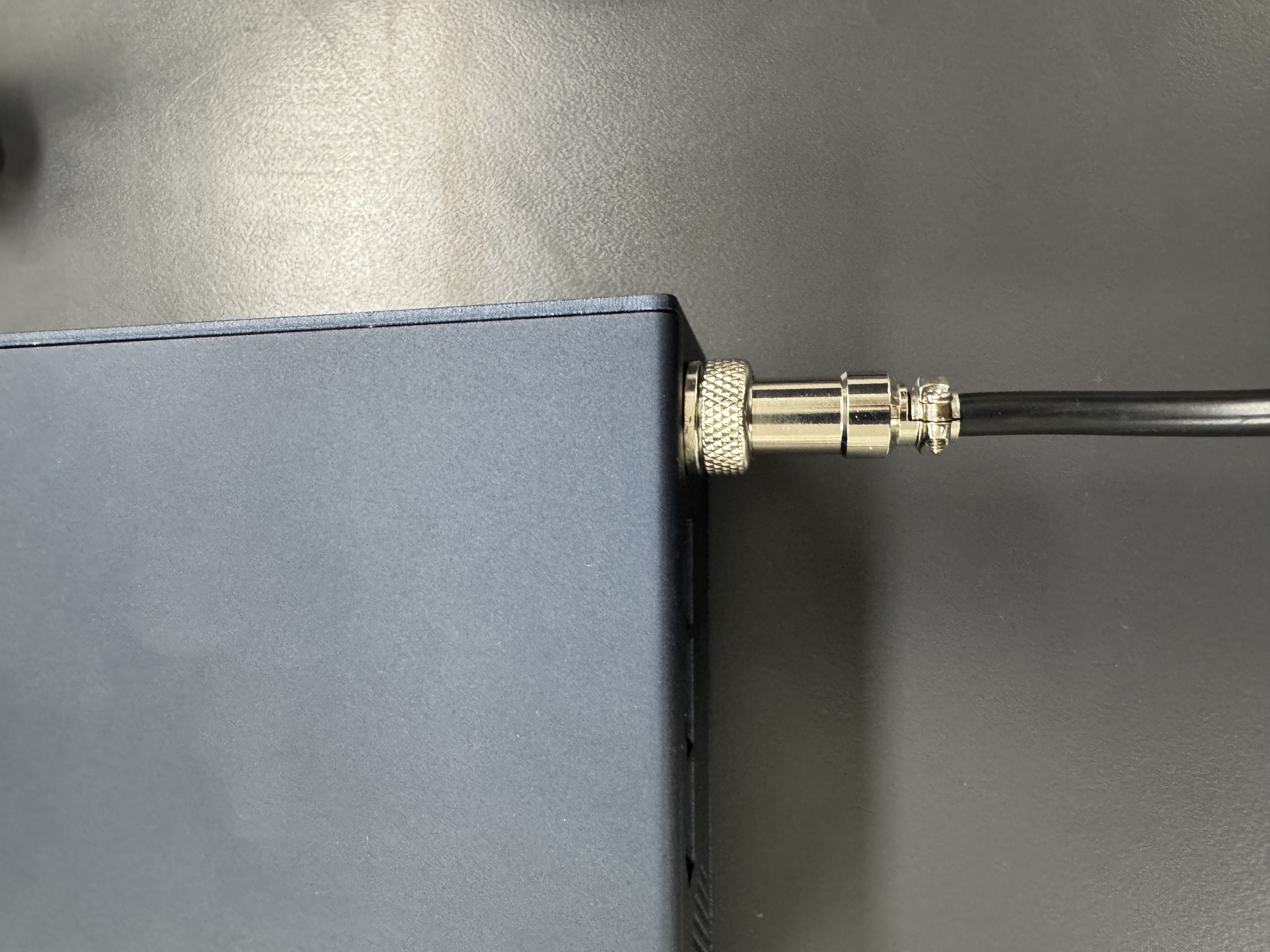

Secure the Connection: Once fully inserted, hand-tighten the metal nut on the connector to ensure it stays securely locked in place.

Securing the locking nut
Power Up: Finally, plug the power cable into a standard wall outlet. Your StellarX will power on automatically.

4. Network Configuration

To talk to StellarX, your PC needs to be on the same "wavelength" (network subnet).

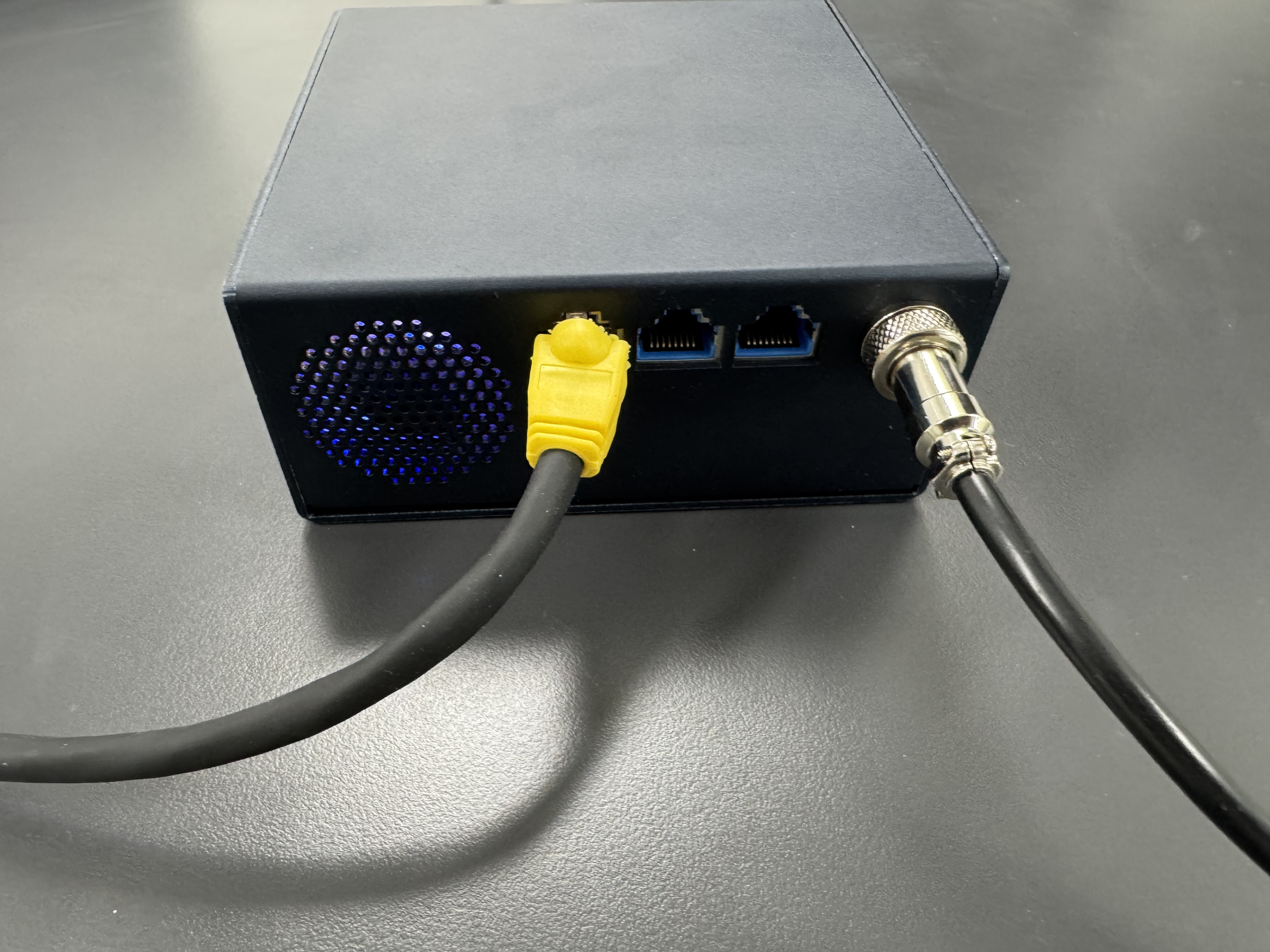

Physical Connection: Connect an Ethernet (LAN) cable to Eth1 (Port 1) on the StellarX unit and the other end to your PC’s LAN port.

Connecting to Eth1
Configure Your PC: Since StellarX's Eth1 is fixed at 10.0.0.1, you must set your PC to a static IP in the same range (e.g., 10.0.0.2).

⚠️ Note: Avoid using 10.0.0.1 for your PC, as this will cause an IP conflict.
- For Ubuntu Users:
  1. Go to Settings > Network.
  2. Click the gear icon next to your wired connection.
  3. Select the IPv4 tab and choose Manual.
  4. Set Address: 10.0.0.2 / Netmask: 255.255.255.0.
- For Windows Users:
  1. Go to Settings > Network & Internet > Ethernet.
  2. Find IP assignment and click Edit.
  3. Select Manual, toggle IPv4 On, and enter:
  4. IP address: 10.0.0.2
  5. Subnet mask: 255.255.255.0
Verify the Connection: Open your preferred web browser (Chrome, Edge, etc.) and type the following into the address bar: http://10.0.0.1

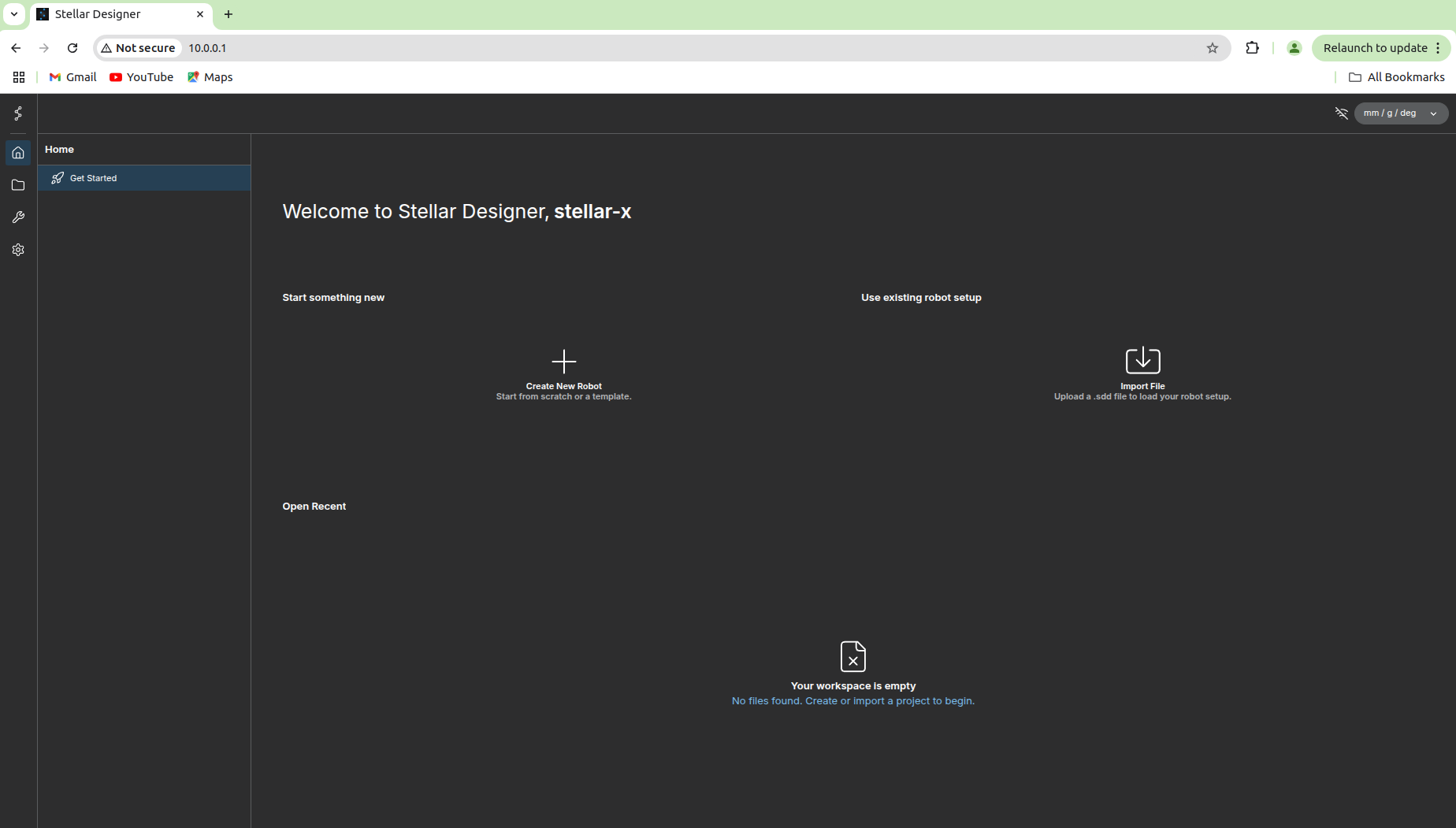

Success! If the Stellar Designer welcome screen appears, you are officially ready to start your project!

Stellar Designer Welcome Screen

5. Hardware Factory Reset

If you ever forget your IP settings or need a fresh start, you can perform a factory reset.

The Procedure

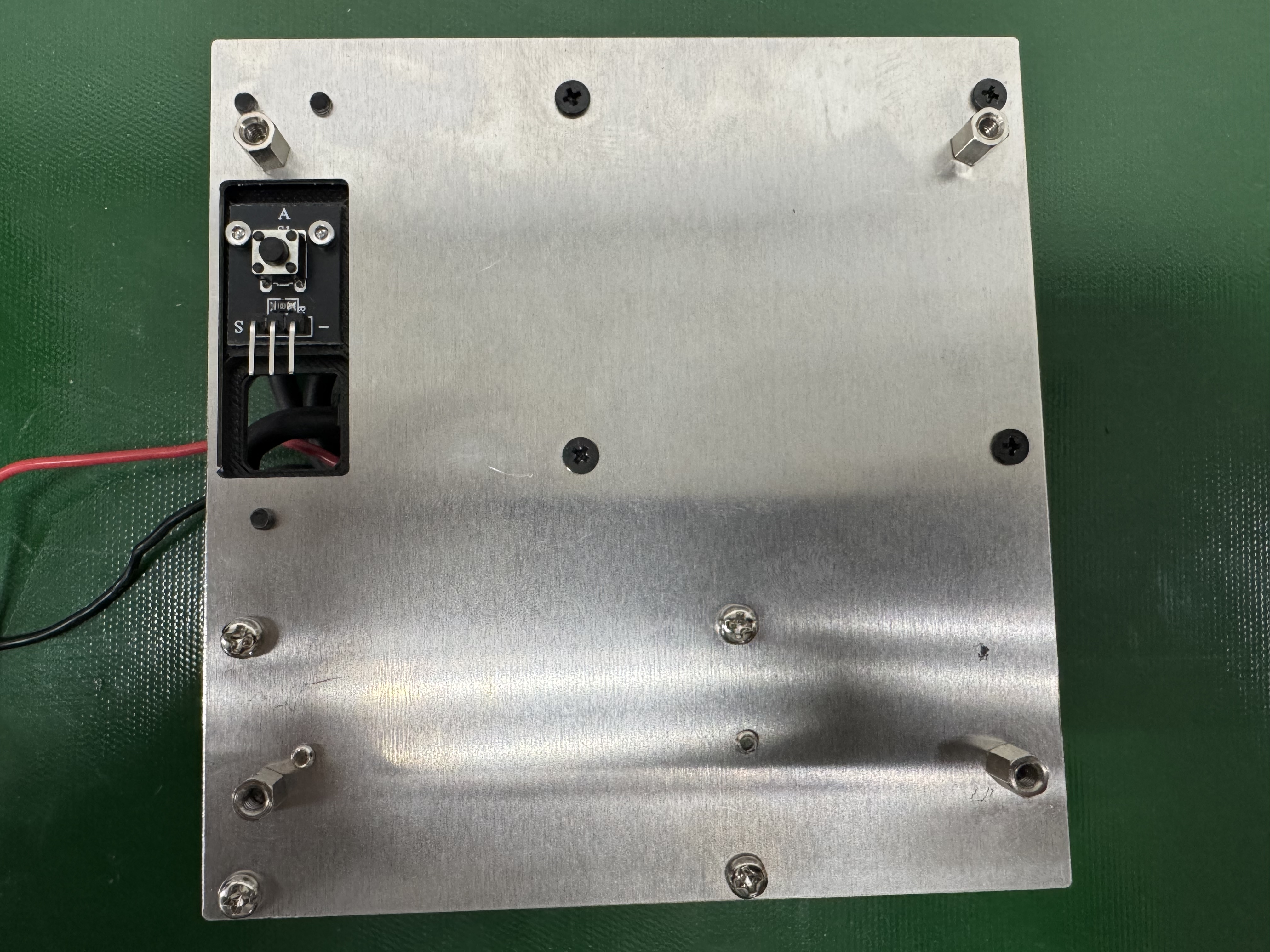

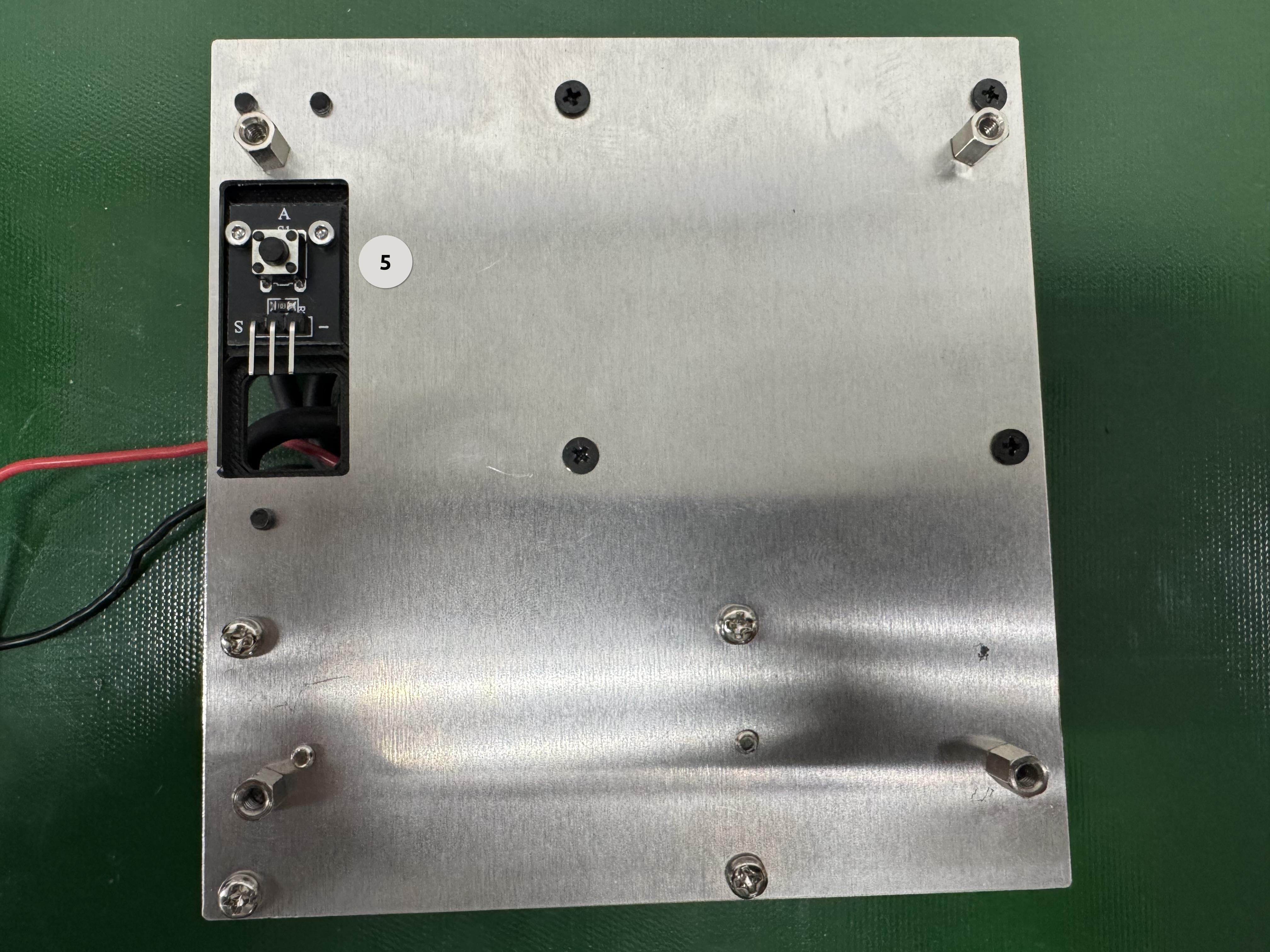

Locate the Reset Button on the bottom of the unit.
Press and hold the button for more than 3 seconds.
The system will automatically reboot.
Once back up, Eth1 will be restored to the default IP: 10.0.0.1.

Troubleshooting

If the reset doesn't seem to trigger, try these steps: 1. Power Cycle: Unplug the power, wait 10 seconds, and plug it back in. 2. Wait & Retry: Give the system about 1 minute to fully initialize, then try holding the reset button for 3 seconds again.

⚠️ Warning: A factory reset will permanently erase all stored data, including projects, scripts, and custom settings. Please use this feature with caution.
